Fixed Temperature Heat Detector Hong Chang HC-407A

Fixed Temperature Heat Detector Hong Chang HC-407A

Fixed Temperature Heat Detector Hong Chang HC-407A

On the surface of the fixed-temperature(60° C) heat detector is exposed a temperature-preset sensor and a piece of metal that can increase the heat-receiving. When the fire makes the room temperature rise gradually until the temperature has risen and reached the preset point of alarm temperature(60° C), the alarm is initiated.
Category: Tags: , ,

Description



 Hong Chang Fixed Temperature Heat Detector
 Voltage 24VDC System from Panel
 Alarm Temperature 30±5℃
 Standby Current
0μA
 Alarm Current
60mA
 Suitable Temperature
-15~50° C
 Suitable Humidity
0~95% RH
 Size
103mm x 44mm
 Weight
120g
 Material
Fire-resisting ABS material
 Joint Contact
Copper (zinc-plated)
 Color
Ivory White



• With dual LED, easy to observe state of detector.
• The dual LED light up constantly when the detector alarms.
• With large metal surface to expose the air to sense the temperature.

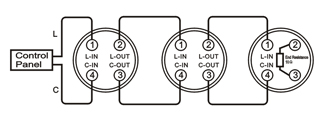

Fixed Temperature Heat Detector Hong Chang HC-407A Wiring Diagram
