Description
| Protek | Fire Monitor | |||||||
| Style | 612 | |||||||
| Max. GPM (LPM) | 1250 ( 4800 ) | |||||||
| Inlet Size | 3″ ( Female ) | |||||||
| 4″ ( Female ) | ||||||||
| 3″ ( Female Thread ) | ||||||||
| Outlet | 2-1/2″ | |||||||
| Control | Dual Handle-Wheel | |||||||
| Material | Brass | |||||||
| Finish | Red Powder Coating | |||||||
| Friction loss | 26 psi at 1250 GPM 18 psi at 1000 GPM |
|||||||
| Travel | 140° vertical 360° Rotation |
|||||||
| Weight | 60 Lbs. ( 27 Kg ) | |||||||
Unique Features of protek Industrial Monitors Style 612
- Powder coating produces a tough, corrosion resistant finish
- Major components made from brass alloy ( UNS C83600, ASTM B62 ) for a long-lasting service life
- Compatible with Protek’s diverse range of water and self-educting foam monitor nozzles for various applications
- Double-row stainless steel ball bearings in monitor joints ensure smooth movements even when the monitor is under pressure
- Fully enclosed worm gear is protected from the elements
- Optional flanges : ANSI, ASA, DIN or ISO
- Each monitor is uniquely numbered to aid identification and track manufacturing date and effective warranty period

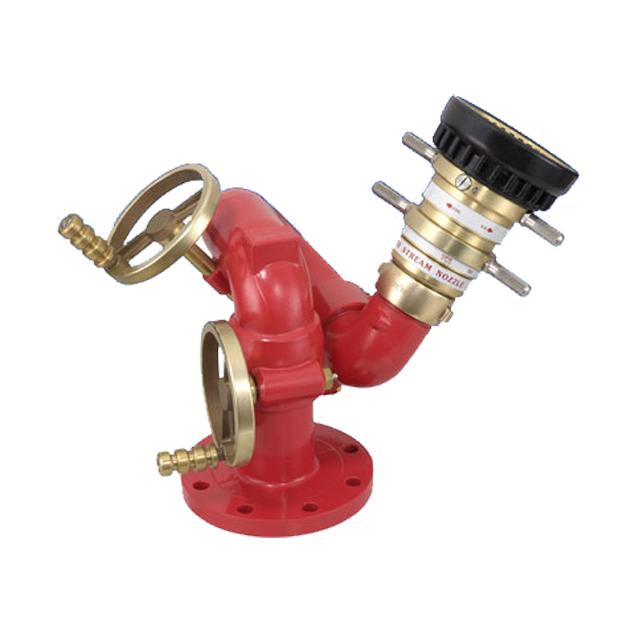

Style 612 Monitor Shown with Style 848-BC Nozzle
Compatible Products :
823-BC Monitor Nozzle, 887-BC Self-Educting Nozzle, 848-BC Monitor Nozzle, 119-BC Stream Shaper
 |
|
|
|
|
|
|
|
|
|
|
