Description

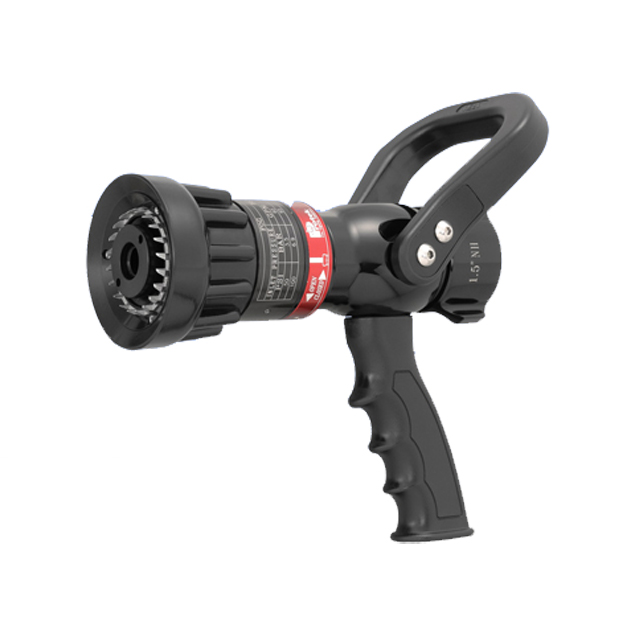

| Protek | Fire Fighting Multi-Purpose Nozzle | |||||||
| Style | 332 | |||||||
| Inlet Size | 1-1/2″ ( 38 mm ) | |||||||
| Lenght | 8.6″ ( 218 mm ) | |||||||
| Weight Lbs (Kg) | 3.5 (1.6 Kg ) | |||||||
| Tip Options | 3/8″, 1/2″, 5/8″ | |||||||
| Fog at 100 PSI | ||||||||
| GPM | 60 | |||||||
| LPM | 230 | |||||||
| Certificate | NFPA 1964 Compliant | |||||||
Style 332 Flow Chart
| Tip Size |
Inlet
Pressure (PSI)
|
Solid Bore
Flow (GPM)
|
Fog Flow
(GPM)
|
Combination
Flow (GPM)
|
| 3/8″ |
50
75
100
|
23
30
36
|
42
50
60
|
66
75
95
|
| 1/2″ |
50
75
100
|
45
60
66
|
42
50
60
|
86
110
120
|
| 5/8″ |
50
75
100
|
75
95
100
|
42
50
60
|
105
135
155
|
• Operates effectively from 50 psi (3.5 bar) to 100 psi (7 bar)
• Exceptionally lightweight and compact
• Suitable for use with CAFS systems
• Conforms to all aspects of NFPA 1964 (Spray, Nozzles, Shutoff and Tips)
