Description

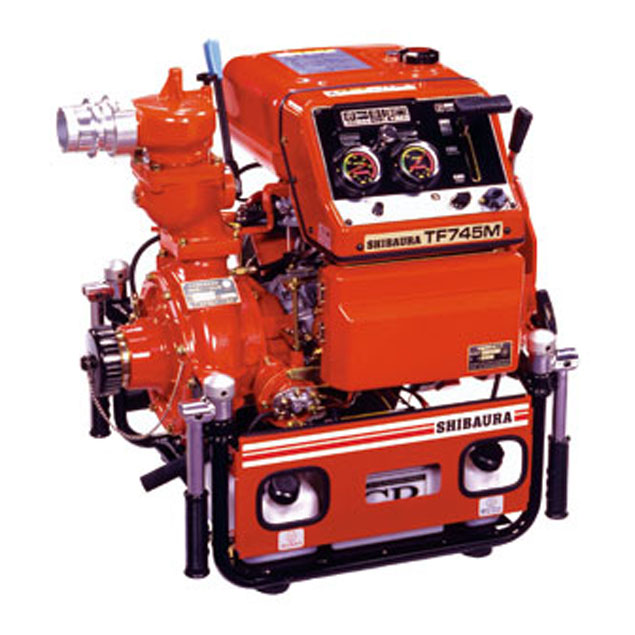

| SHIBAURA TF 745 M Air-Cooled Fire Pump | |
|---|---|
| DIMENSION (mm) | 737 x 572 x 765 |
| DRY WEIGHT (kg) | 90 |
| PUMP | |
| MODEL | SHIBAURA B612B |
| TYPE | High Pressure One Stage Turbine Pump |
| RATED PRESSURE DISCHARGE | 0.50 MPa, 1420 L/min |
| HIGH PRESSURE DISCHARGE | 1.0 MPa, 900 L/min |
| DISCHARGE Dia/Tread | 65 mm |
| SUCTION Dia/Tread | 75 mm |
| NOZZLE RATED /HIGH | 19.0 mm / 14.0 mm |
| ENGINE | |
| MODEL | SHIBAURA E440C |
| TYPE | AiR Cooled Two-Cycle Gasoline Engine |
| COOLING SYSTEM | AIR COOLED TYPE |
| NO OF CYLINDER | Two Cylinder |
| DISPLACEMENT | 436 cc |
| BORE | 68mm X 60mm |
| MAX OUTPUT | 34kw / 46ps |
| RATED OUTPUT | 22.8kw / 31ps |
| STARTING | Electric Starter / Manual Starter |
| AUTO DECOMPRESSION | YES |
| IGNITION | CD ignition |
| FUEL TANK CAPACITY | 14.5 L |
| FUEL CONSUMPUTION | 14 L |
| FUEL SYSTEM | Auto Choke Carburetor |
| FUEL TYPE | Regular Unleaded Gasoline |
| LUBRICATION | Separate Oil Feeding System |
| MIXING RATIO | Governor |
| LUBRICATION OIL | 2-Cycle Engine Oil |
| OIL TANK | 2 L |
| SPARK PLUG | NGK B 8 HV |
| OPERATION LIGHT | 12V5W |
| LIGHT | 12V -35W |
| OIL-LESS VACUUM PUMP | |
| MODEL | 4-VANE ECCENTRIC ROTARY OILLESS/OIL TYPE |
| BLADE TYPE | HIGH STRENGTH CARBON BLADE |
| MAXIMUN SUCTION HEIGHT | 9M |
| STANDARD ACCESSORIES | |
| Battery Charger, Tool Kit, Pump Cover, Spark Pulg | |
1. Auto Choke Carburetor System
Both of air and engine thermometer can work a good adjustment for choke valve automatically, and gives you easy starting by just turning the main switch on.
2. Water-Stop valve system
5 valves are integrated into one body for your simple maintenance and easy operation.
3. Advance fuel feeding system
Advanced fuel feeding system provide you with optimum gasoline / oil mixing rate under any circumstances at any time.
4. Oilless Vacuum Pump
Oilless vacuum pump uses high-strength carbon blades which does not need lubricating oil inside a pump. Harmless method for human and enviroment, as its does not discharge oily water on the ground.
