Gergaji Mesin – STIHL Chainsaw 461R

Gergaji Mesin – STIHL Chainsaw 461R

Gergaji Mesin - Stihl Chainsaw MS 461R

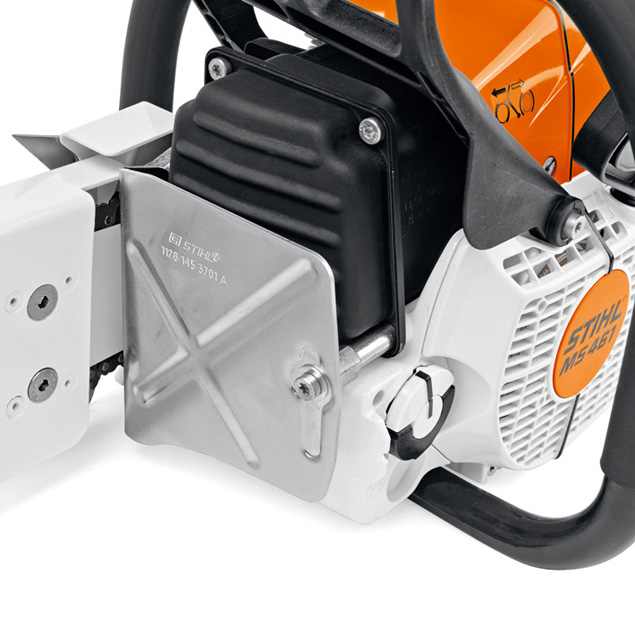

STIHL Chainsaw 461R

Gergaji Mesin – STIHL Chainsaw 461R

RESCUE SAW

MS 461 -R, Rescue saw, Bar length 50cm
STIHL adalah sebuah gergaji khusus untuk petugas pemadam kebakaran dan penyelamatan ( Rescue ), Gergaji mesin ini sering dipakai oleh petugas Pemadam Kebakaran di wilayah Indonesia. Gergaji mesin STIHL dengan sebutan (R) dilengkapi dengan pegangan wrap-around.
Untuk operasi darurat dan pemadaman kebakaran. Pegangan tambahan untuk penyesuaian cepat dan mudah dari kedalaman pemotongan, pegangan starter yang besar dan katup dekompresi untuk mulai melihat gergaji yang aman dan mudah, rantai gergaji khusus dilapisi dengan pelat karbida tahan benturan.

Categories: Gergaji, Peralatan Tangan Tags: Gergaji Mesin, Gergaji Mesin - Stihl Chainsaw 461R, Stihl Chainsaw 461R

Description

Description

Specifications
Features
Downloads

Technical Specifications	STIHL Chainsaw 461R
Type / Model	STIHL
Engine	2-cycle
Cylinder Displacement	76.5 cc
Power Output	4.5 kW (6.0 bhp)
Ignition System	Electronic
Chain Oil Capacity	0.325 L
Fuel Tank Capacity	0.80 L
Fuel	Petrol mixed with 2-cycle engine oil
Fuel Mix Ratio	1 L STIHL engine oil : 50 L Petrol
Engine Weight Without Guide BAR & SAW Chain	7.0 kg
Bar Length	20″ (50 cm)
Maximum Engine Speed With Guide BAR & SAW Chain	13.500 rpm

STIHL Chainsaw	Standard equipment
	STIHL ElastoStart Due to compression pressure, jerky stresses occur when starting internal combustion engines. The damping element in the ElastoStart special starter grip alternately absorbs and releases force according to the compression pattern. The result is smooth, even starting.
	STIHL 2-MIX engine The two-stroke engine with STIHL 2-MIX technology saves up to 20 % of fuel and reduces emissions by up to 70 % compared to STIHL 2-stroke engines of the same performance class without 2-MIX technology.
	Controlled-delivery oil pump Different bar lengths, wood types and sawing techniques require different amounts of oil. The controlled-delivery oil pump allows the user to select just the right amount of oil for the job at hand.
	Side-mounted chain tensioning Side-mounted chain tensioning makes it easy to tension the chain safely.
	HD2 filter This air filter keeps even the finest dust away from the engine, ensuring a particularly long service life. Thanks to its special material, the filter can easily be cleaned by washing, for example with STIHL Varioclean and warm water.
	Compensator This controller in the carburettor prevents the fuel-air mixture getting richer as the air filter becomes clogged. The correct quantity of fuel is delivered to the carburettor depending on the quantity of air passing through the air filter. This keeps the fuel/air ratio in the combustion mixture constant and hence also the engine power. The filter doesn’t need to be cleaned until an appreciable drop in power occurs.
	Decompression valve The decompression valve is part of the easy starting system. The valve should be pressed before starting to reduce the compression pressure when starting, as well as reducing the effort needed to pull the starter rope. The decompression valve is semi-automatic; it must be pressed manually before starting, but then closes automatically.
	STIHL anti-vibration system Precisely calculated buffer zones minimise the transfer of engine and saw chain vibrations to the front and rear handles. The chainsaw therefore runs noticeably smoother. This allows the user to save their strength and work longer.
	STIHL Ematic System Compared to conventional bars without Ematic, the STIHL Ematic system reduces the consumption of chain lubricant by up to 50 %, depending on the type of wood and the cutting attachment used. This system comprises a STIHL Ematic or Ematic S guide bar, a STIHL Oilomatic saw chain and a variable-flow or reduced-flow oil pump. As a result, virtually every drop of chain lubricant is delivered to exactly the right spot.
	Single-lever master control All important functions such as start, choke, throttle and stop are operated via a single lever.
	Tool free fuel caps Special caps to open and close the tank cap quickly, easily and without tools.

Deviations from the product range and information provided here are possible, depending on the country. VIKING reserves the right to make changes to technical specifications and equipment.

	Brosur – STIHL Chainsaw 461 R
