Smoke Plus Heat Combo Detector Hong Chang HC-207D

Smoke Plus Heat Combo Detector Hong Chang HC-207D

Smoke Plus Heat Combo Detector Hong Chang HC-207D

This is a multi-function detector which responds to smoke and temperature both. It is a Ionization Smoke Detector attached a heat sensor. The responded temperature is set at 60° C. When the fire makes the room temperature rise gradually until the temperature has risen and reached to 60° C, the alarm is initiated.
Category: Tags: , ,

Description



 Hong Chang Smoke Plus Heat Combo Detector
 Voltage 24VDC System from Panel
 Alarm Temperature 60° C
 Standby Current
70μA
 Alarm Current
30mA
 Suitable Temperature
-15~50° C
 Suitable Humidity
0~95% RH
 Size
103mm x 43mm
 Weight
150g
 Material
Fire-resisting ABS material
 Joint Contact
Copper (zinc-plated)
 Color
Ivory White

Notes
Prohibit from being installed at the places with large volume of smoke and steam lingering, and the inlet and outlet of cold and warm air.



• With dual LED, easy to observe state of detector.
• With dual LED flash once every 4 ~ 6 seconds in peacetime to show if the detector work normally.
• The dual LED light up constantly when the detector alarms.
• With (-R) contact to connect to a remote indicating lamp to show alarm signal in different area.

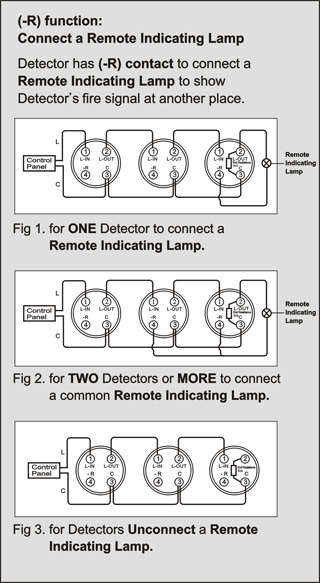

Smoke Plus Heat Combo Detector Hong Chang HC-207D Wiring Diagram



Brochure Smoke Plus Heat Combo Detector Hong Chang HC-207D
