Description

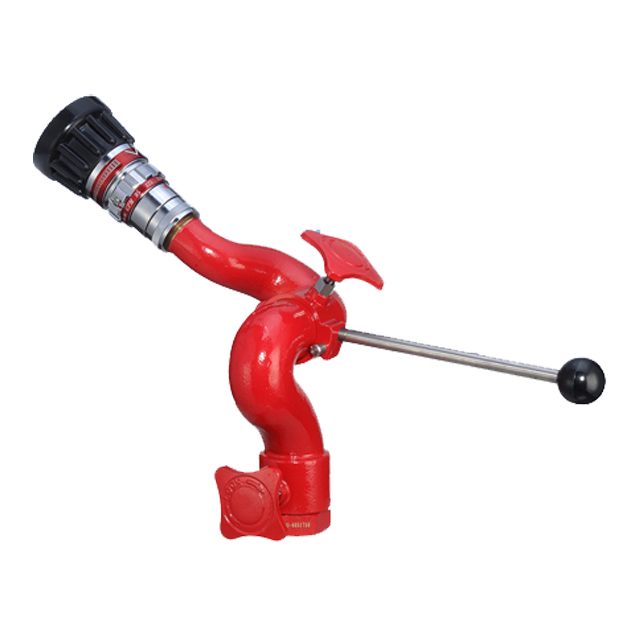

| Protek | Fire Monitor | |||||||
| Style | 605 | |||||||
| Max. GPM (LPM) | 500 ( 1900 ) | |||||||
| Inlet Size | 2″ ( Female Thread ) | |||||||
| 2-1/2″ ( Flange ) | ||||||||
| 3″ ( Flange ) | ||||||||
| Outlet | 1-1/2″ | |||||||
| Control | Tiller Bar | |||||||
| Material | Brass | |||||||
| Finish | Red Powder Coating | |||||||
| Friction loss | 28 psi at 500 GPM 15 psi at 350 GPM |
|||||||
| Travel | 140° vertical 360° Rotation |
|||||||
| Weight | 19 Lbs. ( 9 Kg ) | |||||||
Unique Features of protek Industrial Monitors Style 605
- Flow turning vanes in each elbow efficiently reduce friction
- Powder coating produces a tough, corrosion resistant finish
- Positive friction locks with brass knob for both horizontal and vertical travel to hold desired position
- Stainless steel lever for durability and easy control
- Major components made from brass alloy ( UNS C83600, ASTM B62 ) for a long-lasting service life
- Available in 2″ NPT or 2″ BSP threaded inlet and optional flange
- Double-row stainless steel ball bearings in monitor joints ensure smooth movements even when the monitor is under pressure
- Compatible with Protek’s diverse range of water and self-educting foam monitor nozzles for various applications
 |
|
|
|
|
|
|
|
|
|
|
