Description
| Protek | Fire Monitor | |||||||
| Style | 649 | |||||||
| Max. GPM (LPM) | 1250 ( 4800 LPM ) | |||||||
| Inlet Size | 3″ ( Flange ) | |||||||
| 4″ ( Flange ) | ||||||||
| 2-1/2″ ( Female Thread ) | ||||||||
| Outlet | 2-1/2″ | |||||||
| Control | Tiller Bar | |||||||
| Material | Brass | |||||||
| Finish | Red Powder Coating | |||||||
| Friction loss | 18 psi at 1250 GPM 15 psi at 1000 GPM |
|||||||
| Travel | 150° vertical 360° Rotation |
|||||||
| Weight | 56 Lbs. ( 25 Kg ) | |||||||
| Certification | FM Approved | |||||||

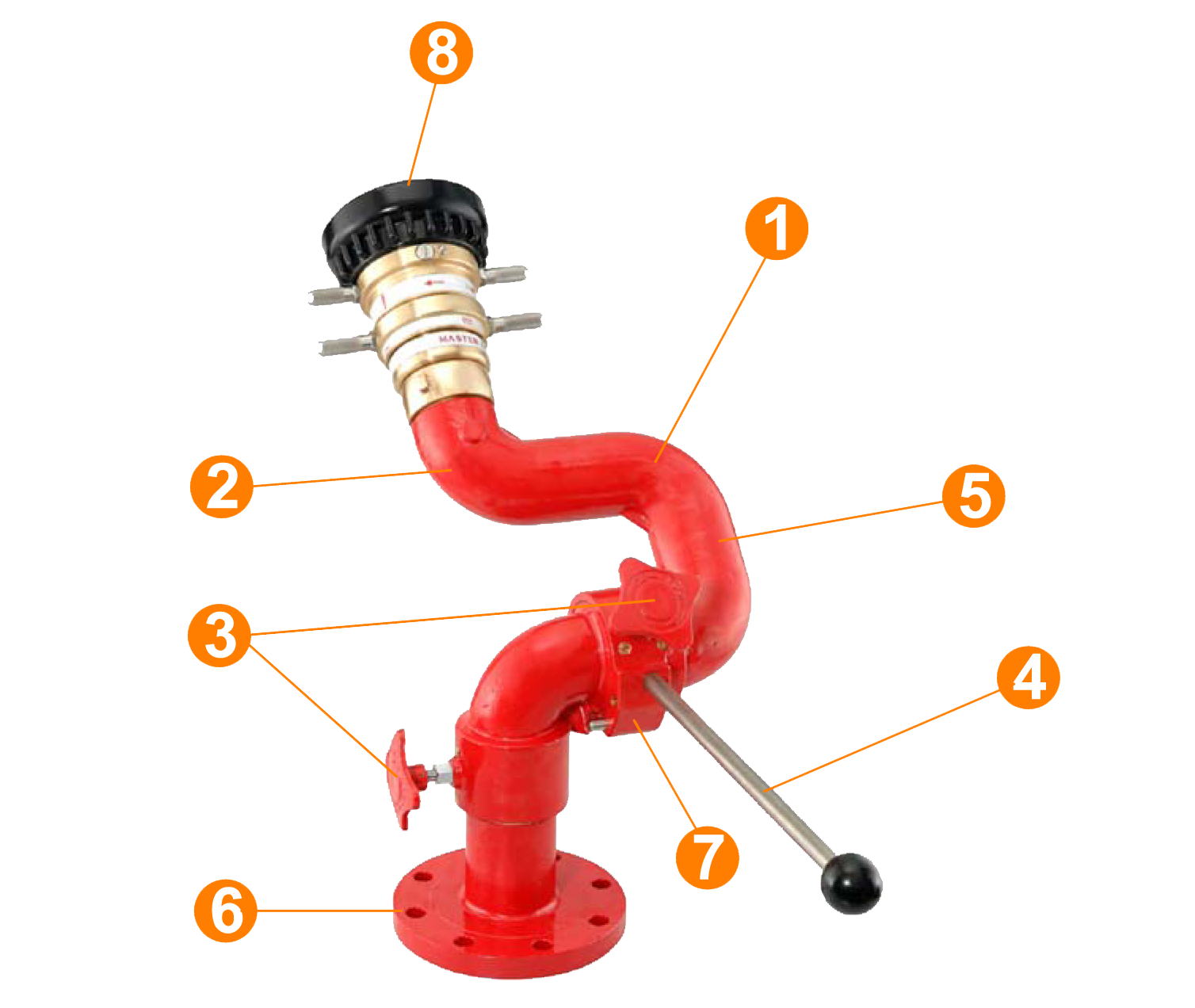

Unique Features of Protek Industrial Monitors Style 649
- Flow turning vanes in each elbow efficiently reduce friction
- Powder coating produces a tough, corrosion resistant finish
- Positive friction locks with brass knop for both horizontal and vertical travel to hold desired position
- Stainless steel lever for durability and easy control
- Major components made from brass alloy (UNS C83600, ASTM B62) for a long-lasting service life
- Optional flanges : ANSI, ASA, DIN or ISO
- Double-row stainless steel ball bearings in monitor joints ensure smooth movements even when the monitor is under pressure
- Compatible with Protek’s diverse range of water and self-educting foam monitor nozzles for various applications
 |
|
|
|
|
|
|
|
|
|
|
