Description
| Protek | Industrial Ground Monitors | |||||||
| Style | 633 | |||||||
| Max. GPM (LPM) | 750 ( 2900 LPM ) | |||||||
| Inlet Size | 3″ ( Flange ) | |||||||
| 4″ ( Flange ) | ||||||||
| 3″ ( Female Thread ) | ||||||||
| Outlet | 2-1/2″ | |||||||
| Control | Dual Hand-Wheel | |||||||
| Material | Alloy | |||||||
| Finish | Red Powder Coating | |||||||
| Friction loss | 35 psi at 700 GPM 18 psi at 800 GPM |
|||||||
| Travel | 135° vertical 360° Rotation |
|||||||
| Weight | 28 Lbs. ( 13 Kg ) | |||||||
Style 633 Monitor Accessories
| Style 119 | Stream Shaper |
| Style 560 | Monitor Ball-Valve Shutoff |
| Style 699 | Hydrant Mount |
| Style 911 | Oscillating |
| Style 916 | Oscillating |

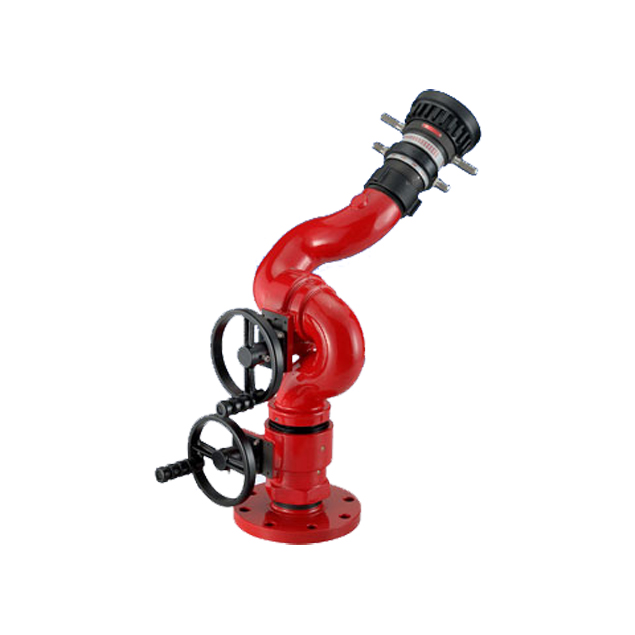

Unique Features of protek Industrial Monitors Style 633
• Red Powder coating
• 2-3/4″ Waterway with Cast-In Turning Vane
• Change pattern from straight stream to fog via easy turn of the control bar
• Dual hand wheel with worm gear controls vertical and horizontal travel
• Select flow setting without shutting down
• 3″ Flanges, 4″ Flange or 3″ Female Thread
Compatible Protek Nozzles :
Style : 823, 825, 830, 832, 835, 845, 847, 848, 887, 888, 889
 |
|
|
|
|
|
|
|
|
|
|
