Description

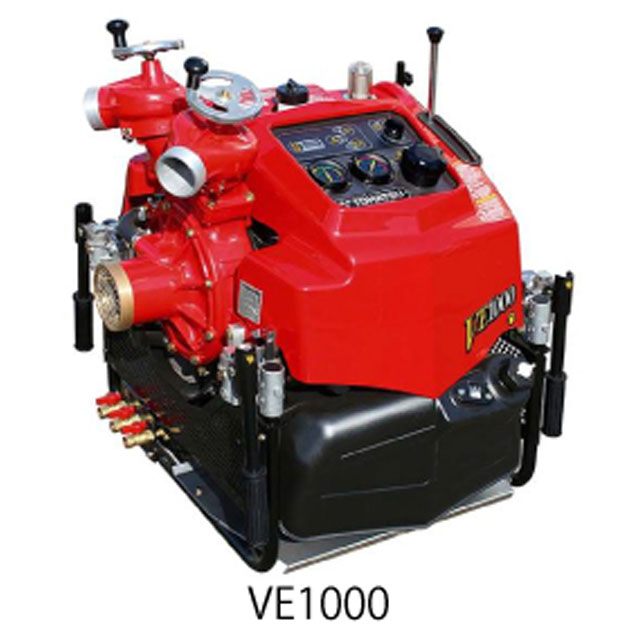

| TOHATSU | PORTABLE FIRE PUMP |
| Model | VE1000 |
| Engine : | |
| Type |
Tohatsu 2-stroke, 2-cylinder, water cooled gasoline engine
|
| Bore & Stroke |
81mm x 78mm (3.19 x 3.07 inch)
|
| Piston displacement |
804cc (49.0 cu in)
|
| Authorized output |
44 kW / 60PS
|
| Fuel tank |
24 liters
|
| Fuel consumption |
16 liters/h
|
| Ignition |
Flywheel magneto (C.D.I. system)
|
| Starting system |
Electric starter and recoil system
|
| Lubrication |
Auto mixing
|
| Light bulb |
12V-35W
|
| Battery |
12V-16Ah/5h
|
| Pump : | |
| Type |
Single suction, single stage, high pressure turbine pump
|
| Discharge Thread and Dia. |
BSP thread 2-1/2″ (65mm) male
|
| Suction Thread and Dia. |
BSP thread 4″ (100mm) male
|
| Priming |
Rotary-vane vacuum pump (Oilless type)
|
| Pump performance (Suction height: 3m) |
1900 liter/min. at 0.6MPa
1650 liter/min. at 0.8MPa
1300 liter/min. at 1.0MPa
|
| Overrall dimensions |
Length: 748mm x Width: 732mm x Height: 827mm
|
| Mass : | |
| Dry |
107kg
|
| Wet |
127kg
|
| Max. suction height : |
Approx. 9m(29.5 feet)
|
More attractive features and functions are added to maximize efficiency of fire services.
1. Complies with EN 14466 for PFPN10-1500 & PFPN10-1000.
2. High volume water flow. (1500L / 1000L@10BAR)
3. The lightest & the most compact model in its class.
4. The best suction performance in its class (9m / 30ft).
5. Easy & smooth start by battery-less EFI. (Electric Fuel Injection).
6. 90 degree swinging twin outlets.
7. Maximum discharge head 100m.(1500L/Min)
