Description
| Protek | Industrial Ground Monitors | |||||||
| Style | 661 | |||||||
| Max. GPM (LPM) | 2000 ( 7570 LPM ) | |||||||
| Inlet Size | 4″ ( Flange ) | |||||||
| 6″ ( Flange ) | ||||||||
| Outlet | 3-1/2″ | |||||||
| Control | Dual Hand-Wheel | |||||||
| Material | Brass | |||||||
| Finish | Red Powder Coating | |||||||
| Friction loss | 38 psi at 2000 GPM 15 psi at 1200 GPM |
|||||||
| Travel | 135° vertical 360° Rotation |
|||||||
| Weight | 108 Lbs. (49 Kg) to 121 lbs (55 Kg) | |||||||
Compatible Products
837-BC Monitor Nozzle, 833 Automatic Nozzle, 121 Quad Stacked Tips, 109 Stream Shaper
Unique Features of protek Industrial Monitors Style 661
- Powder coating produces a tough, corrosion resistant finish
- Major components made from brass alloy ( UNS C83600, ASTM B62 ) for a long-lasting service life
- Compatible with Protek’s diverse range of monitor nozzles and smooth bore tips for various applications
- Flow turning vanes in each elbow efficiently reduce friction
- Double-row stainless steel ball bearings in monitor joints ensure smooth movements even when the monitor is under pressure
- Fully enclosed worm gear is protected from the elements
- Optional flanges : ANSI, ASA, DIN or ISO
- Each monitor is uniquely numbered to aid identification and track manufacturing date and effective warranty period

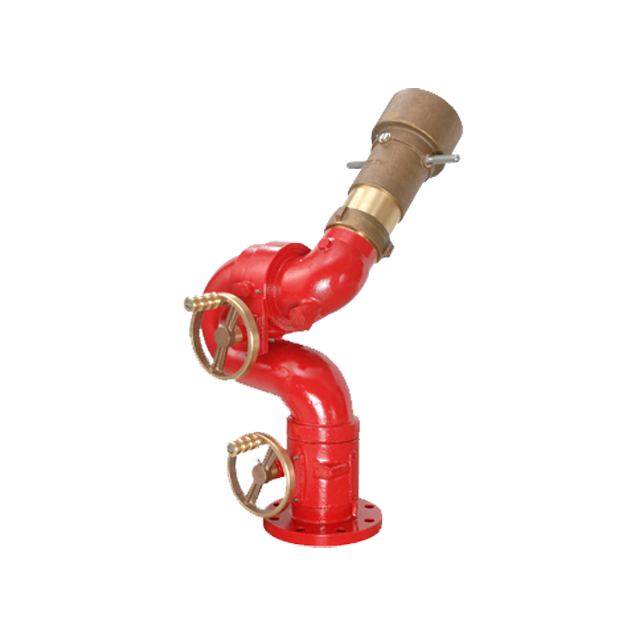

• Style 661 monitor shown with Style 837-BC nozzle
 |
|
|
|
|
|
|
|
|
|
|
