Description
| Protek | Industrial Ground Monitors | |||||||
| Style | 736 | |||||||
| Max. GPM (LPM) | 1250 ( 4800 LPM ) | |||||||
| Inlet Size | 3″ ( Flange ) | |||||||
| 4″ ( Flange ) | ||||||||
| 6″ ( Flange ) | ||||||||
| 3″ ( Female Thread ) | ||||||||
| Outlet | 2-1/2″</td | |||||||
| Control | Tiller Bar | |||||||
| Material | Brass | |||||||
| Finish | Red Powder Coating | |||||||
| Friction loss | 24 psi at 1250 GPM 20 psi at 1000 GPM |
|||||||
| Travel | 135° vertical 360° Rotation |
|||||||
| Weight | 44 Lbs. (20 Kg) | |||||||
| Certification | FM Approval | |||||||
Unique Features of protek Industrial Monitors Style 736
- One-piece seamless brass tube
- Powder coating produces a tough, corrosion resistant finish
- Stainless steel lever for durability and easy control
- Double-row stainless steel ball bearings in monitor joints ensure smooth movements even when the monitor is under pressure
- Positive friction locks for both horizontal and vertical travel to hold desired position
- Extensive inlet options
- Optimises advanced computer aided design and testing technology to minimise flow turbulence
- Compatible with Protek’s diverse range of monitor nozzles and smooth bore tips for various applications

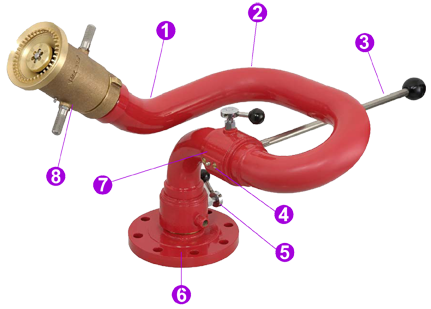

• Style 736 monitor shown with Style 823-BC nozzle
 |
|
|
|
|
|
|
|
|
|
|
